About This

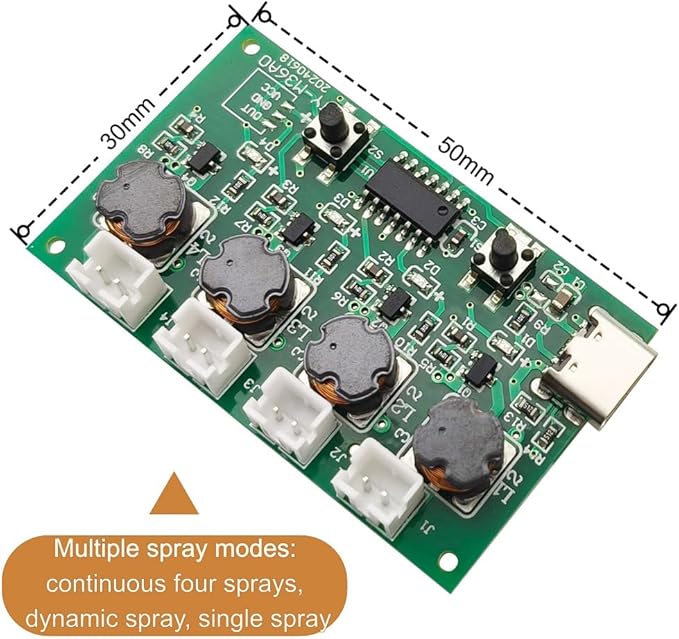

Multiple spray modes: continuous four sprays, dynamic spray, single spray. Application: DIY spray, plant hydration humidification, landscaping atomization. Note: The atomizing piece needs to be used together with the circuit board with the same frequency to achieve the ideal spray amount.
①Continuous four spray mode: press S1 switch for the first time, the LED light is always on, four port continuous spray mode, continuous spray, spray automatically shut down after two hours. Press the S1 switch for the second time to shut down.
②Dynamic spray mode (press S1 to start up first): press S2 switch for the first time, spray for 3 seconds with 1 port, and the light will be on accordingly; Spray for 3 seconds from the 2nd second with 2 port, and the light should be on accordingly; Spray for 3 seconds from the 3rd second with 3 port, and the light should be on accordingly; Spray for 3 seconds from the 4th second with 4 port, and the light is on accordingly; In the 5th second, the spray starts at the No.1 port for 3 seconds and circulates in turn.
③Indirect spray mode: press S2 switch for the second time, 1 port spray, the light corresponds to light; Press S2 switch for the third time, 1 and 2 port spray, and the light is on; Press S2 switch for the fourth time, 1, 2 and 3 port spray, and the light corresponds to light; Press S2 switch for the fifth time, 1, 2, 3, 4 port spray, and the light is on; Press the S2 switch for the sixth time to return to the S2 start function. The above functions will automatically shut down after 2 hours. Shutdown: Press S1.

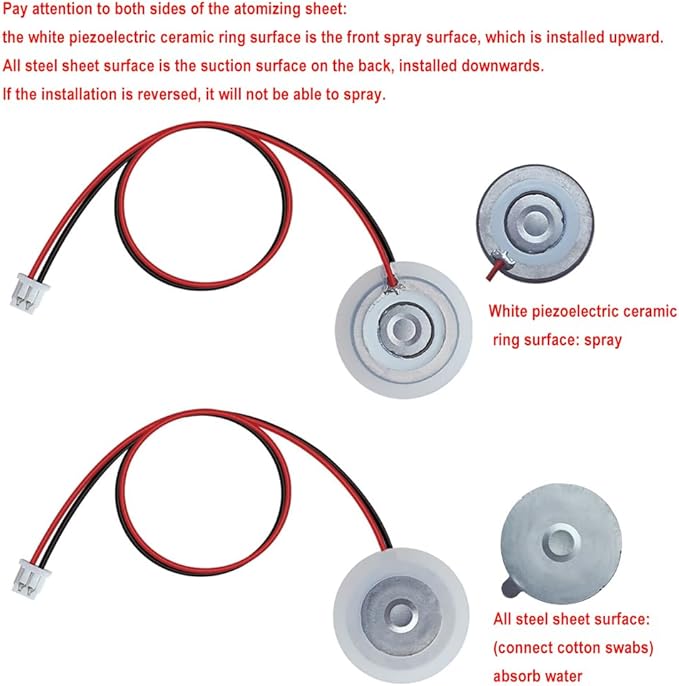

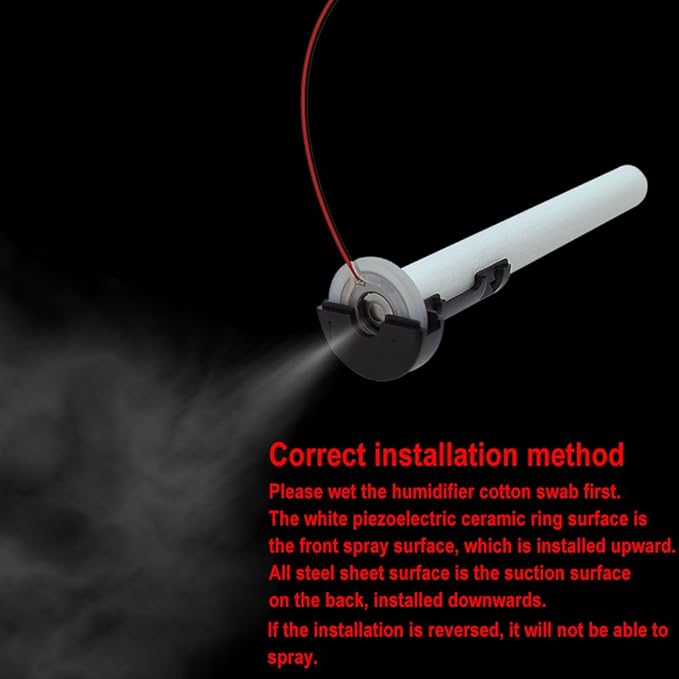

Pay attention to both sides of the atomizing sheet: The white piezoelectric ceramic ring surface is the front spray surface, which is installed upward, All steel sheet surface is the suction surface on the back, installed downwards. If the installation is reversed, it will not be able to spray. The red wire is positive and the black wire is negative.

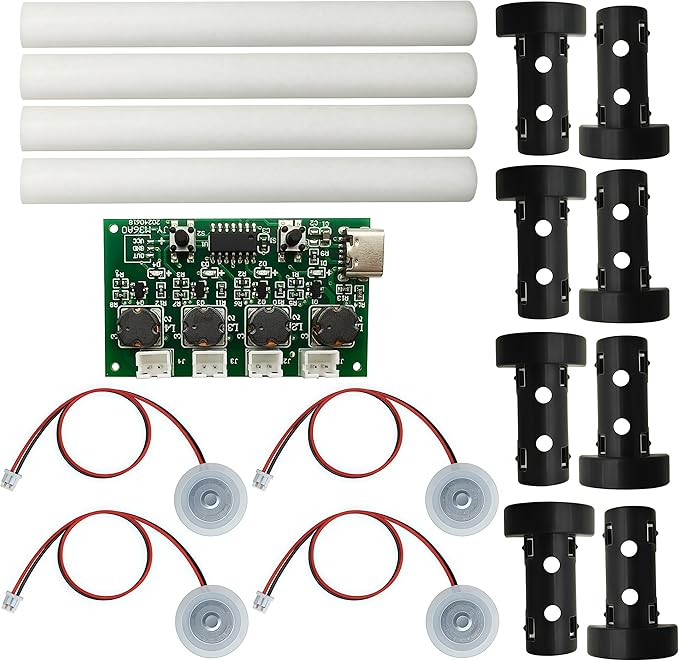

How to use: 1. First install the atomizer plate, holder, cotton swab. 2. Connect the atomizer plate to the module port (White PH2.0 terminal). 3. Connect the power supply to the module power port (Type-C socket). 4. Press the power switch. 5. The atomizer plate will spray when it comes into contact with water.
