About This

Working voltage: 2.15-5.5V

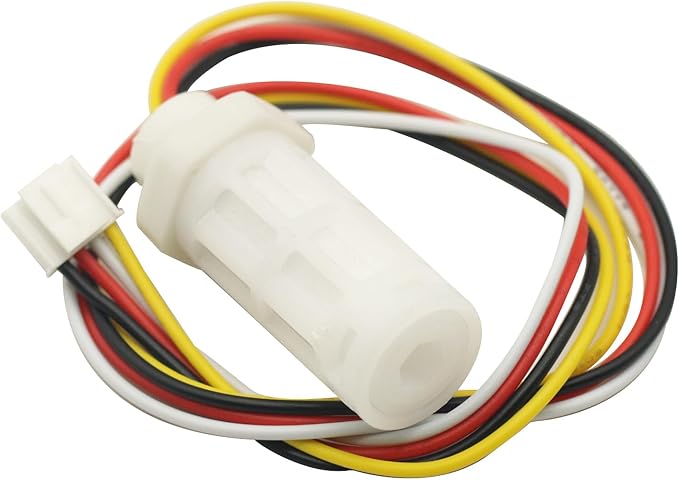

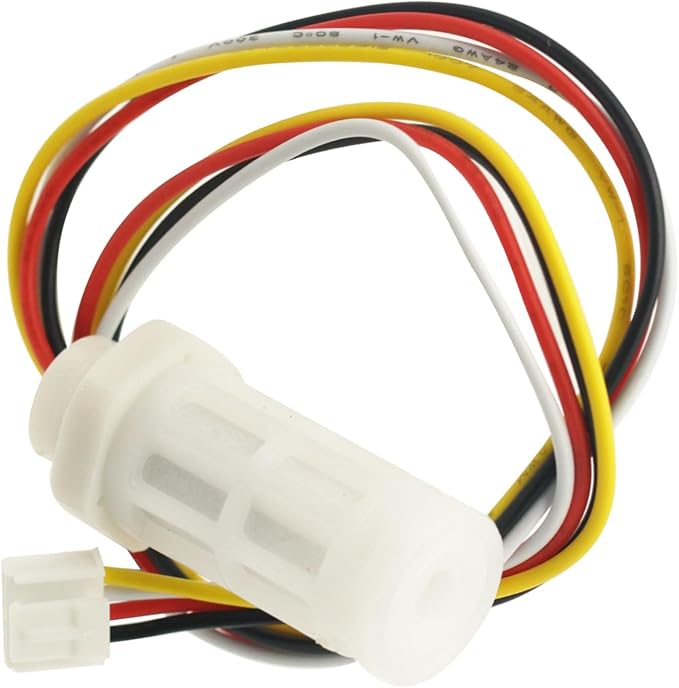

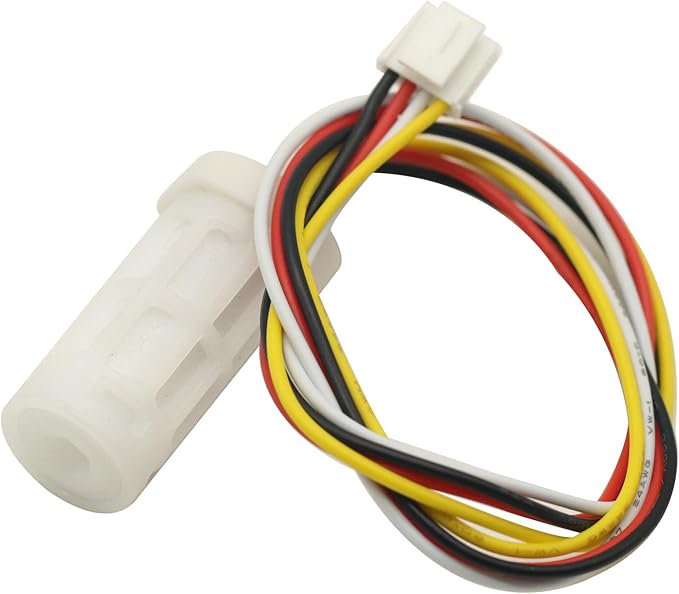

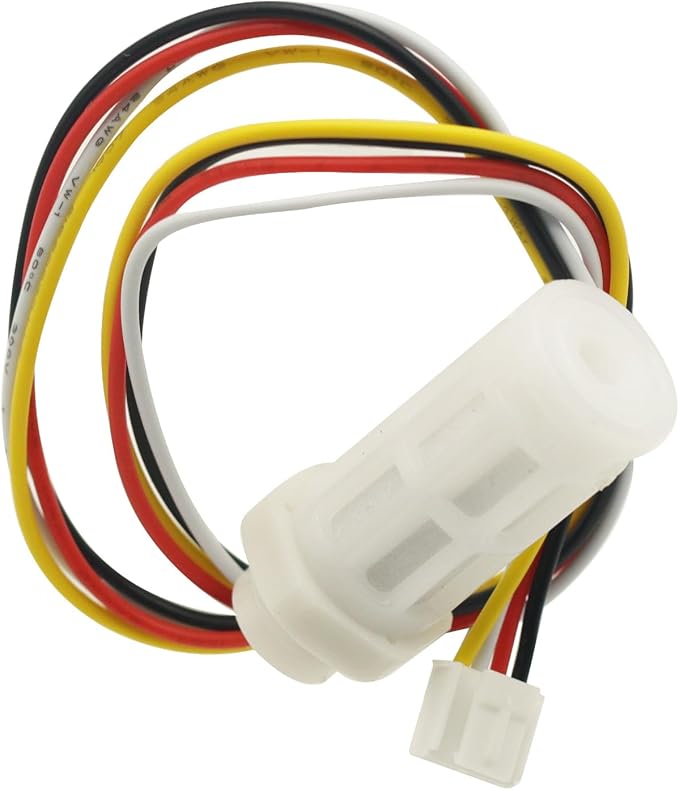

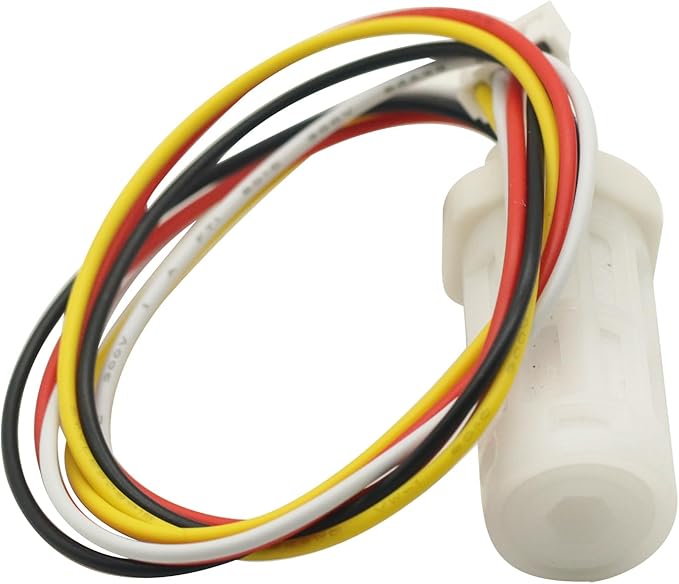

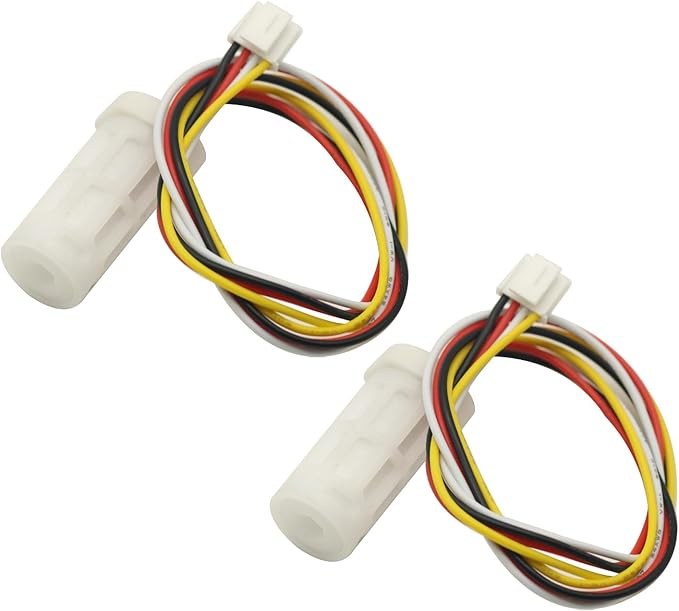

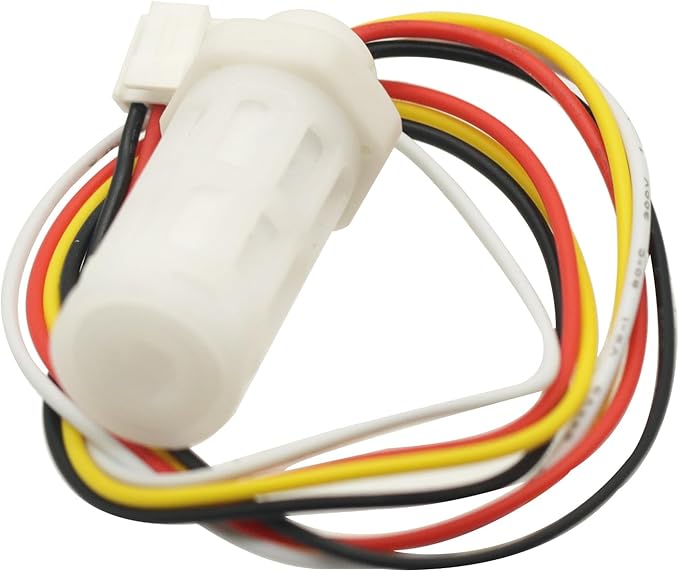

SHT30, the whole is made of glue and waterproof treatment, to prevent condensation and cause short circuit damage to the sensor. Onboard 10K pull-up resistor and 100nF filter capacitor. The sensor PCB board is encapsulated in the protective cover of the PE cylinder, and it is led out through a 28cm 4PIN 24 electronic wire, and the interface is HY2.0-4P (2.0 with lock)
In order to prevent the water molecules inside the sheath from condensing into water when the ambient temperature is lowered, which causes the circuit board to be short-circuited or the sensor is damaged, we have applied glue to the circuit board and potted the mouth of the sheath. No interference to the measured value.
Output signal: IIC digital signal Humidity measurement range: 0...100%RH Temperature measurement range: -40...125℃ Accuracy: ±2%RH ±0.2℃ IIC address: 0X44
SHT30 temperature and humidity sensor
i2c temperature sensor
i2c humidity sensor
