About This

Its heavy duty kiln thermocouple can measure and control very high temperatures up to 1000C (1832 °F ) and it equipped with timer (T1 and T2)· Equipped with male and female connector, so you can easily change your thermocouple. · To operate, you only need to plug the heater to the socket wire of the controller at the back, drop the sensor into the Kiln, turn on the power of controller and adjust it to your own requirements.

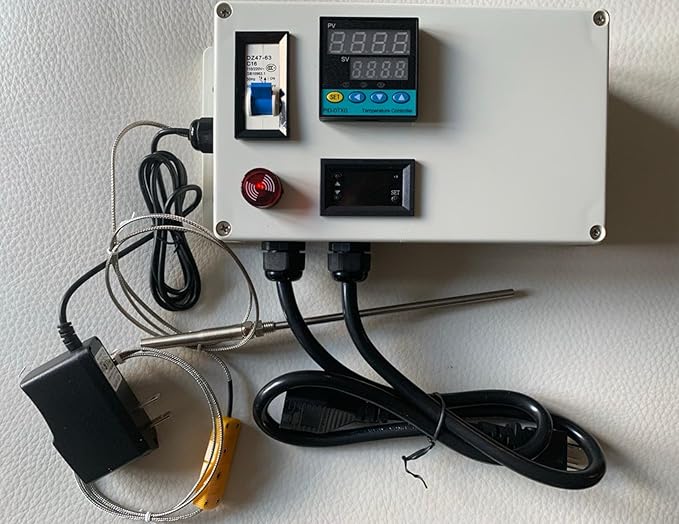

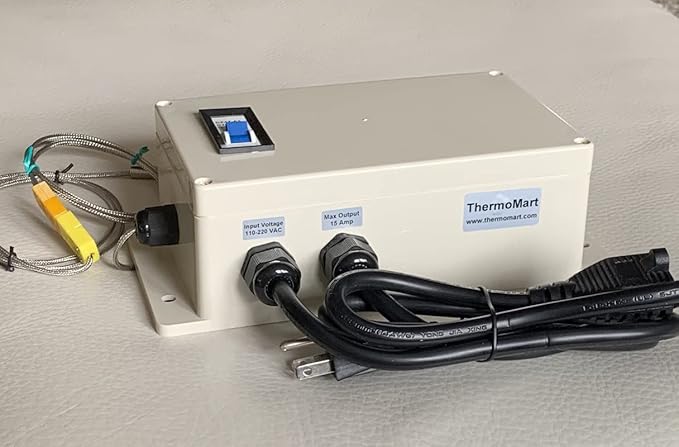

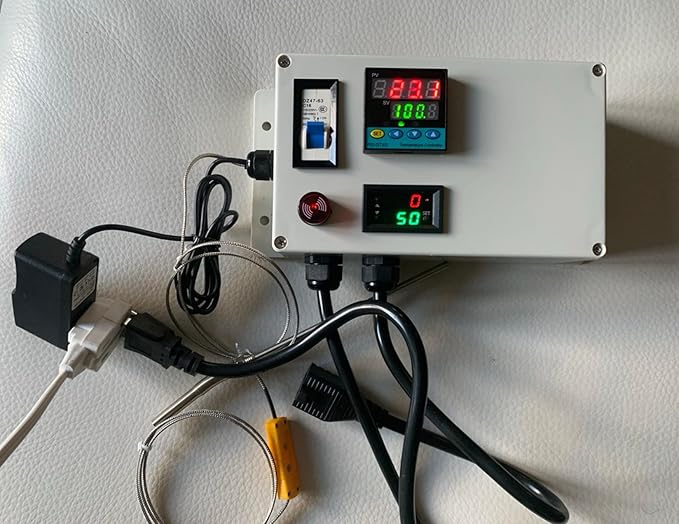

Plug and Play PID one set point Temperature controller box with 15 Amp Maximum current. Equipped with circuit breaker switch 15 Amp (instead of short life fuse) . High Measuring accuracy, ±0.2% or ±1 unit of full input range. Celsius or Fahrenheit display selected on user’s discretion. Calibration function for sensor temperature correction

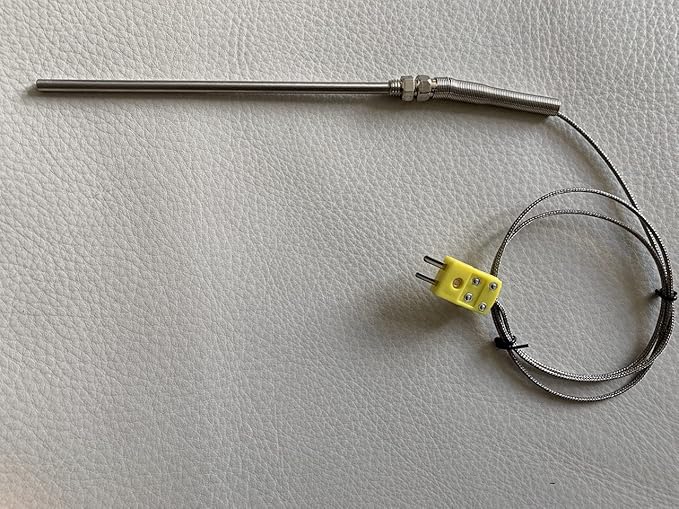

This plug and play temperature controller with 6" long thermocouple, has a wide range of applications in controlling the temperature of Kilns, Ovens, Furnaces & …. (for loading current up to 15Amp) . This is an inexpensive and heavy duty plug and play controller box. Please consider that if you need to change your sensor to specific one, I can change it for you too. It is One set point temperature controller and if you need ramp and soak please see my other products.

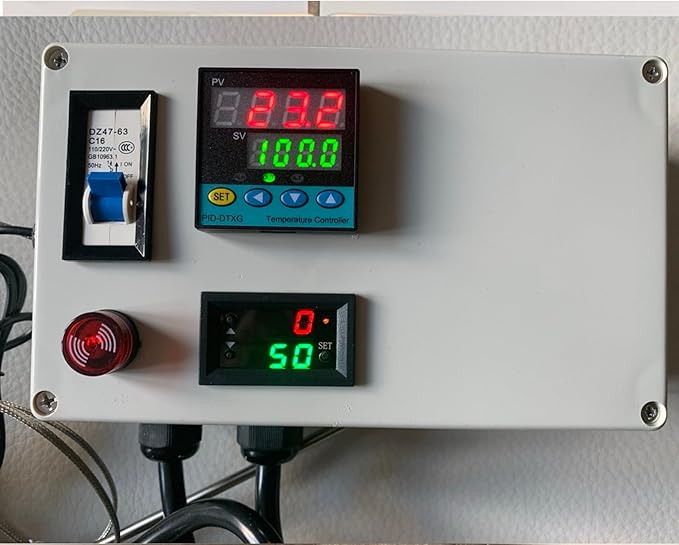

Timer Modes: it has 5 timers mode and you can use one or 2 timer (T1,T2), with or without Cycle or Loop, Delay, Start with on or off relay,
It equipped with Buzzer and Flasher Alarm for High or Low temperature alarm and also alarm for thermocouple problem
