About This

• Features: Relative Humidity and Temperature| Control Sensors | Reference sensors |Limit sensors with Mounting Flange
• HumidityMeasuring Range: 0 To 95 % | Humidity signal output: 4 to 20 mA | Operating voltage: DC 13 To 35 V |Measurement Accuracy:At 15 to 35 °C: ±0.6 K, 23 % r.h.; 30 to 70 % r.h.: ±3 % r.h.
• Immersion Length: 90 to 154 mm | Connection (Electrical): Screw terminals | Flange Type Of Fixing | Terminals G1(+) and I1(−) of the humidity output must always be connected to power, even if only terminals G2(+) and I2(−) of the temperature output are used.
• Degree of Protection: IP54 | Dimensions (W x H x D): 80 x 88 x 39 mm

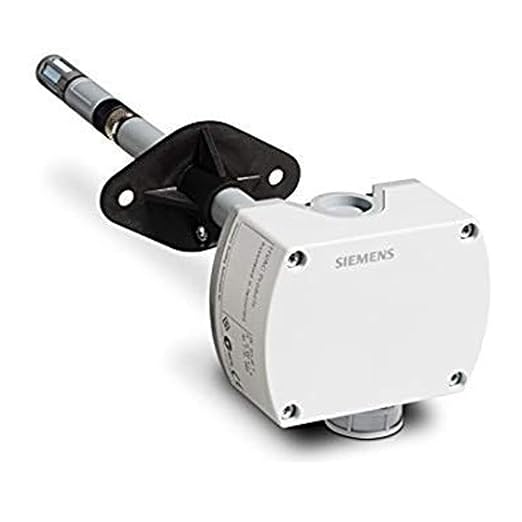

• Scope of Supply: 1 unit of QFM2101 Humidity Duct Sensor and Instruction Manual | Applications: Air Handling, Cooling, Individual Rooms, and Heating etc.
