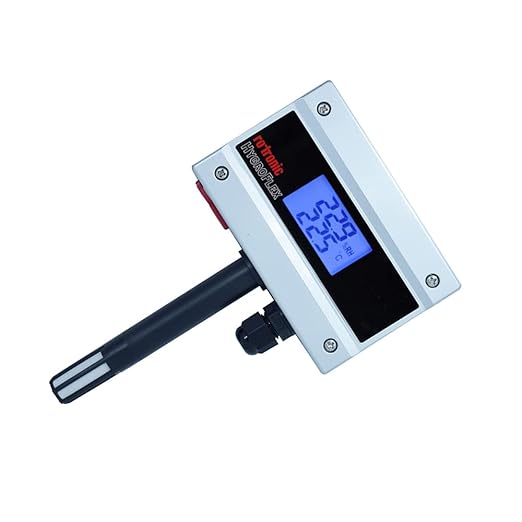

Rotronic Temperature and Humidity Transmitter curometer Wall Mount with Display (Range: -20 to 50 °C & Humidity: 100% RH) for HVAC & BMS,Clean Rooms | Model: HYGROFLEX HF132(WB1XD1XX) by Unknown

Rotronic Temperature and Humidity Transmitter curometer Wall Mount with Display (Range: -20 to 50 °C & Humidity: 100% RH) for HVAC & BMS,Clean Rooms | Model: HYGROFLEX HF132(WB1XD1XX)

$351.00
Skip to product information
Rotronic Temperature and Humidity Transmitter curometer Wall Mount with Display (Range: -20 to 50 °C & Humidity: 100% RH) for HVAC & BMS,Clean Rooms | Model: HYGROFLEX HF132(WB1XD1XX) by Unknown
  • Rotronic Temperature and Humidity Transmitter curometer Wall Mount with Display (Range: -20 to 50 °C & Humidity: 100% RH) for HVAC & BMS,Clean Rooms | Model: HYGROFLEX HF132(WB1XD1XX) by Unknown
  • Rotronic Temperature and Humidity Transmitter curometer Wall Mount with Display (Range: -20 to 50 °C & Humidity: 100% RH) for HVAC & BMS,Clean Rooms | Model: HYGROFLEX HF132(WB1XD1XX) - Image 2
  • Rotronic Temperature and Humidity Transmitter curometer Wall Mount with Display (Range: -20 to 50 °C & Humidity: 100% RH) for HVAC & BMS,Clean Rooms | Model: HYGROFLEX HF132(WB1XD1XX) - Image 3
  • Rotronic Temperature and Humidity Transmitter curometer Wall Mount with Display (Range: -20 to 50 °C & Humidity: 100% RH) for HVAC & BMS,Clean Rooms | Model: HYGROFLEX HF132(WB1XD1XX) - Image 4
  • Rotronic Temperature and Humidity Transmitter curometer Wall Mount with Display (Range: -20 to 50 °C & Humidity: 100% RH) for HVAC & BMS,Clean Rooms | Model: HYGROFLEX HF132(WB1XD1XX) - Image 5
  • Rotronic Temperature and Humidity Transmitter curometer Wall Mount with Display (Range: -20 to 50 °C & Humidity: 100% RH) for HVAC & BMS,Clean Rooms | Model: HYGROFLEX HF132(WB1XD1XX) - Image 6
  • Rotronic Temperature and Humidity Transmitter curometer Wall Mount with Display (Range: -20 to 50 °C & Humidity: 100% RH) for HVAC & BMS,Clean Rooms | Model: HYGROFLEX HF132(WB1XD1XX) by Unknown
  • Rotronic Temperature and Humidity Transmitter curometer Wall Mount with Display (Range: -20 to 50 °C & Humidity: 100% RH) for HVAC & BMS,Clean Rooms | Model: HYGROFLEX HF132(WB1XD1XX) - Image 2
  • Rotronic Temperature and Humidity Transmitter curometer Wall Mount with Display (Range: -20 to 50 °C & Humidity: 100% RH) for HVAC & BMS,Clean Rooms | Model: HYGROFLEX HF132(WB1XD1XX) - Image 3
  • Rotronic Temperature and Humidity Transmitter curometer Wall Mount with Display (Range: -20 to 50 °C & Humidity: 100% RH) for HVAC & BMS,Clean Rooms | Model: HYGROFLEX HF132(WB1XD1XX) - Image 4
  • Rotronic Temperature and Humidity Transmitter curometer Wall Mount with Display (Range: -20 to 50 °C & Humidity: 100% RH) for HVAC & BMS,Clean Rooms | Model: HYGROFLEX HF132(WB1XD1XX) - Image 5
  • Rotronic Temperature and Humidity Transmitter curometer Wall Mount with Display (Range: -20 to 50 °C & Humidity: 100% RH) for HVAC & BMS,Clean Rooms | Model: HYGROFLEX HF132(WB1XD1XX) - Image 6
Rotronic Temperature and Humidity Transmitter curometer Wall Mount with Display (Range: -20 to 50 °C & Humidity: 100% RH) for HVAC & BMS,Clean Rooms | Model: HYGROFLEX HF132(WB1XD1XX)

Rotronic Temperature and Humidity Transmitter curometer Wall Mount with Display (Range: -20 to 50 °C & Humidity: 100% RH) for HVAC & BMS,Clean Rooms | Model: HYGROFLEX HF132(WB1XD1XX)

$351.00

About This

  • Operating Temperature range: -20 °C to 50 °C | Humidity range: 0-100% RH (non-condensing) | Standard temperature scale: 0-50 °C | Accuracy: <± 2 %RH (10-90% RH) adjustable at 35% RH & 80% RH.
  • Supply voltage: 12 to 28 VAC/ 15 to 40 VDC | Long term stability: <1.5% RH per year | Parameters measures: Temperature & Humidity | Display: Yes | Blue Backlit LCD Display.
  • Response time: 4 sec | Type: 3-wire | 2 analog outputs freely scalable | Output Current: 4 to 20 mA | Output Voltage: 0 to 1/ 5/ 10 VDC | Sensor Integrated: Yes.
  • Temperature measurement sensor: Thermistor curometer | CE/EMC compatibility: 2004/108/EC | Weight (Wall mount type): 140 grams | Housing material IP: ABS/IP65.

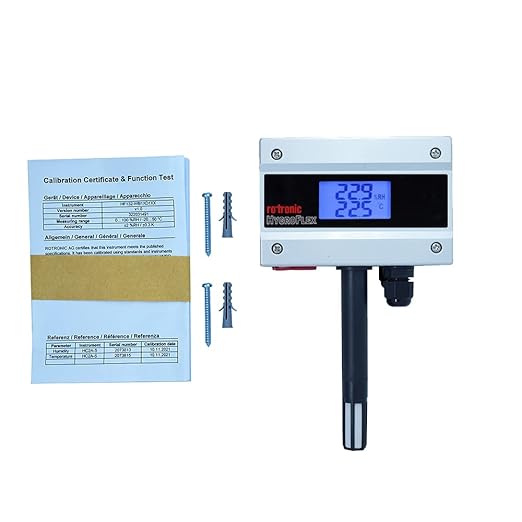

  • Supply Scope: 1 unit of Rotronic HF132 WB1XXXXX/J1 transmitter with Instruction manual | Applications: Heating, Ventilation and air conditioning, Clean rooms, HVAC & BMS (Building Management System).

Overview

  • Brand : Ace Instruments
  • Product Dimensions : 0.59"W x 3.35"H
  • Battery Description : No batteries required
  • Mounting Type : Wall Mount
  • Operating Humidity : 0-100% RH
