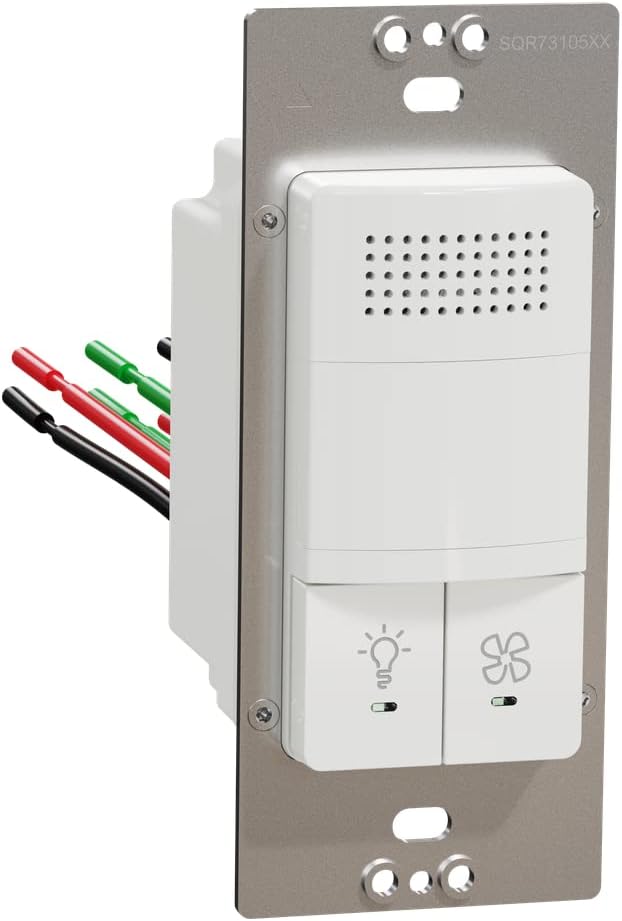

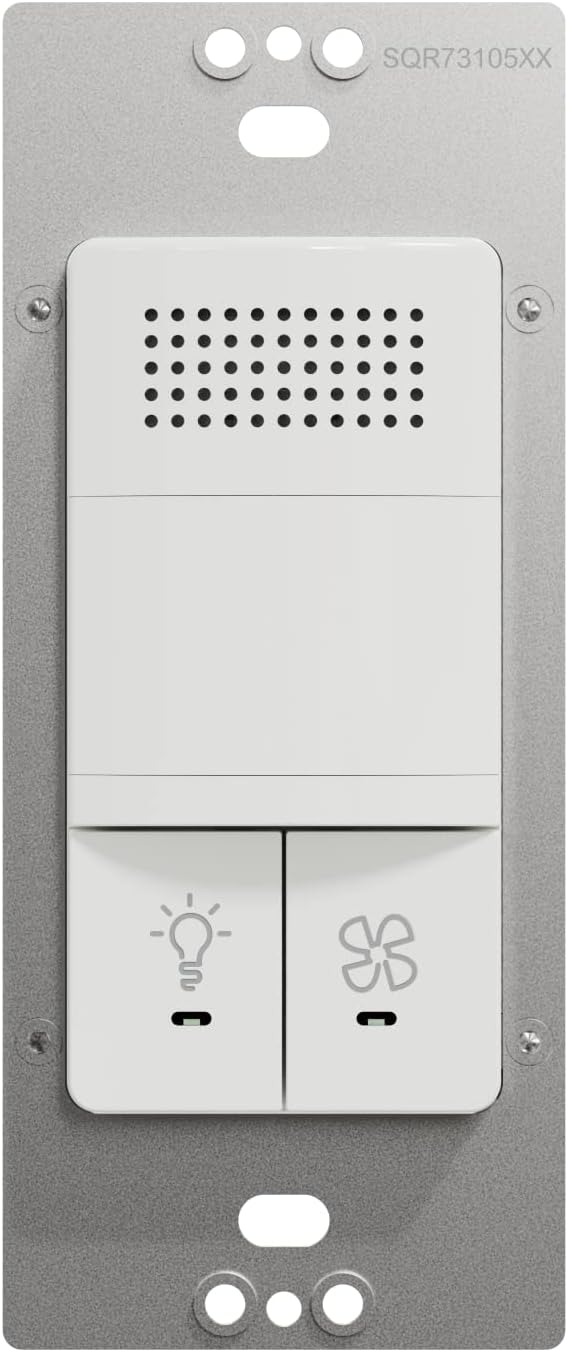

Square D by Schneider Electric Square D X Series Dual Humidity & PIR Motion Occupancy/Vacancy Sensor Light & Fan Control, 3 Amp Single-Pole/1-way, Matte White
$82.19
Skip to product information
Square D by Schneider Electric Square D X Series Dual Humidity & PIR Motion Occupancy/Vacancy Sensor Light & Fan Control, 3 Amp Single-Pole/1-way, Matte White
$82.19
About This
- Combination moisture and motion sensor to automatically control bathroom exhaust fan and light; passive infrared (PIR) motion range up to 600 square feet and programable humidity level
- Relative humidity level can be set between 30 - 85%; adjust timing for fans and lights in increments of 10, 20, or 30 minutes
- Push button provides manual ON/OFF light switching at any time between occupancy detection (lights ON/OFF are fully controlled) and vacancy detection
- Two independent push buttons provide manual control of the fan or light and two configurable working parameters and one configurable light operation mode
- Supports 400W LED or 500W incandescent bulbs, single-pole/1-way wiring, and is CA title 24 and RoHS compliant
Overview
- Operation Mode : ON-OFF
- Current Rating : 3 Amps
- Operating Voltage : 120 Volts
- Contact Type : Normally Open
- Connector Type : Clamp
- Brand : Square D
- Switch Type : Push Button
- Terminal : Screw
- Material : Plastic
- Item dimensions L x W x H : 2.56 x 2.44 x 4.17 inches
